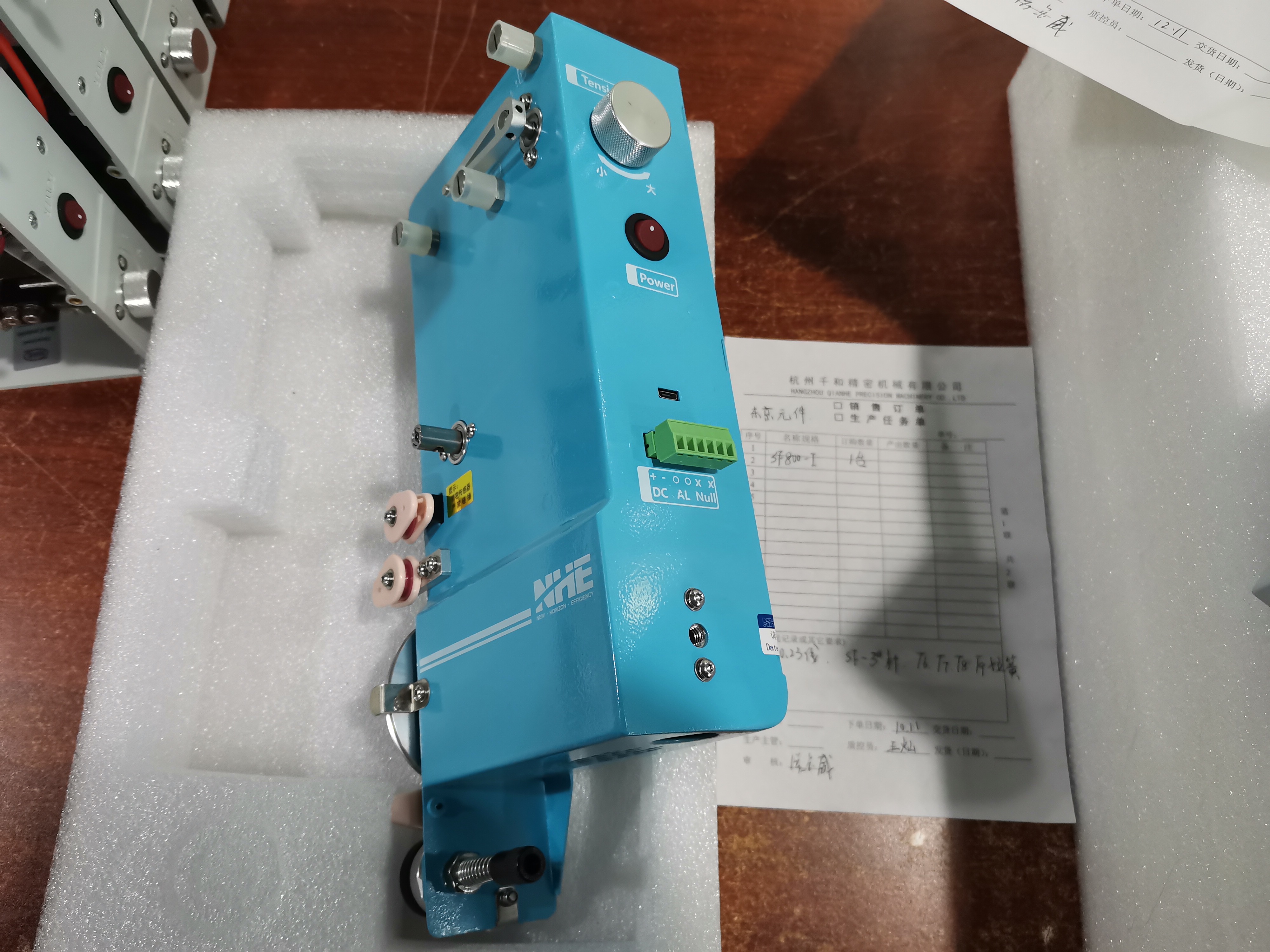

Servo Motor Winding tension Device
wire winding tension is an important factor in the molding techniques of composite material
which influences the quality of winding product directly, and the tension control is a key technique
in wire winding techniques. show that the system is well qualified with high control precision and high reaction speed.
Our Servo Tensioner adopt of Servo Motor not Stepper motor ,
In general, Servo Motors run more smoothly than a stepper motor ,A Servo Motor is a self-contained electrical device,
that rotate parts of a machine with high efficiency and with great precision.
Servo Tensioner
Servo tensioner Unlike traditional tensioning methods,Servo tension device feed the wire automatically depends on the winding requirement.
The tension generate by servo controlled tensiner is very much more stable and consistence,compare with mechanical or magnetic type.
Tension can be set from 2g to 800g,it depends on the model.
Servo motor and control system are all packed within the body,SF series is solid and compact in design.
It operates with DC36V electric power.
1, Active wire feeding follow the speed of the winding machine；
2, SF series servo tensioner with online tension measurement display function, the display value is accurate and stable, the display unit is gf;
3, The DC servo motor with high-precision encoder has the following advantages over the servo tensioner with stepper motor as the wire feeding mechanism:
A,high following accuracy, good tension stability, fast acceleration; low noise;
B,high speed, high torque, large tension range, simple selection;
C,high efficiency, energy saving, low power consumption, minimum operating current, low heat generation of the motor and drive, no need to dissipate heat;
Products features
Benefits
TOP REPEATIBILITY PRODUCTION
CONSTANT ELECTRICAL PARAMETERS OF COILS
PERFECT WIRE LAYERING
Specification :
| Servo Tensioner | |||||||
| Part.No | Tensioner model | Tension Arm | Tension Spring | Tension Range (gf) | Wire Range (mm) | Tension Arm head structure | Tension Arm size |
| 1 | SF800-Ⅰ | SF-1# | T1,T2,T3 | 2-50 | 0.02-0.1 | Ceramic Eylet/Ruby ,Wire Roller(S) | Φ0.8*Φ2*150 |
| 2 | SF800-Ⅰ | SF-2# | T2,T4,T5 | 5-100 | 0.03-0.15 | Ruby / Wire Roller(M) | Φ1.5*Φ2*200 |
| 3 | SF800-Ⅰ | SF-3# | T5,T8,T9 | 30-450 | 0.06-0.28 | Ruby / Ceramic Pulley(005)/Wire Roller(M) | Φ1.5*Φ4*200 |
| 4 | SF800-Ⅰ | SF-4# | T7,T9,T10 | 100-800 | 0.12-0.4 | Ruby / Ceramic Pulley(005)/Wire Roller(L) | Φ2.0*Φ4.0*150 |
Main parameters
| Product Model | Power | Power | Input Air Pressure | Mounting Hole | Weight | Product Size |
| SF800-I | DC36V | 100W | / | Ф 16mm | 1.8kg | 288*164*72.5(mm) |
