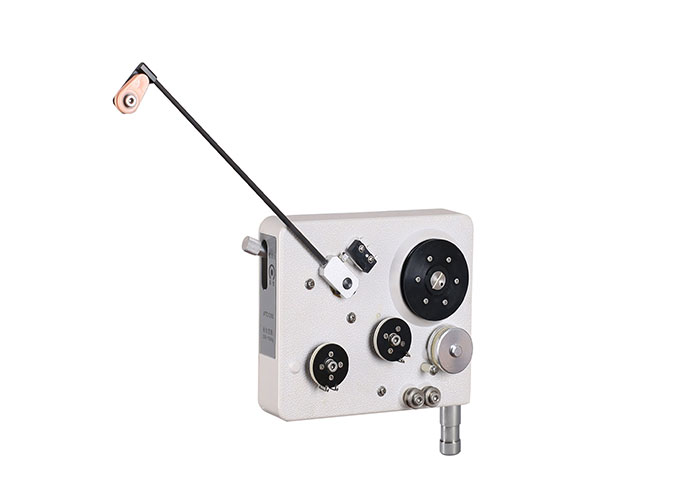

Horizontal Motor Coil Winder Tensioner Tension Control For Winding Machine

​Specification :

Key advantages of Magnetic wire tensioners:

These electromagnetic tensors are used as devices containing permanent magnets
A non-contact method for generating variable resistance to the rotation of the main supply
The wheel is tensioned to hold the line tension at a longer set point
Cycles are much less frequent than their mechanical counterparts
Adjustment.
Polished ceramic holes and guide wheels at each contact point protect the insulating enamel from mechanical damage.
Given the low cost and the excellent performance of these electromagnetic line tensors,
Provide excellent value for money.
The fixed roller on the tension arm is easy to thread, eliminating the chance of a drop.

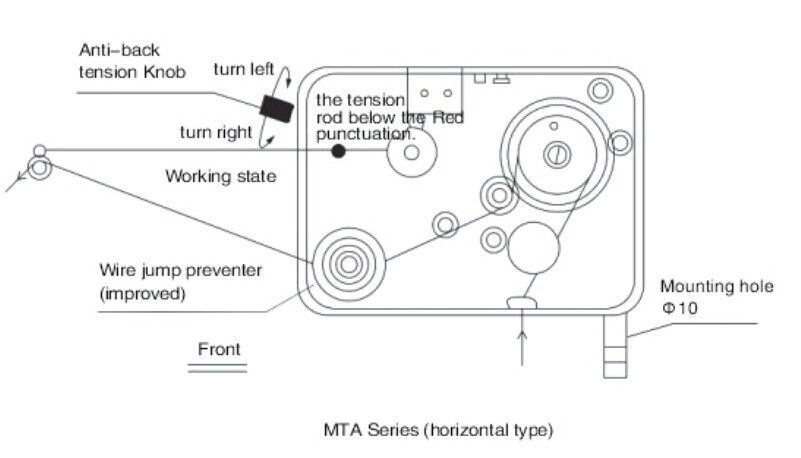

Hanging line diagram

Tensioner test conditions :

Line speed is 15M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.

Key features of Type MTC300S :

• Tension Scope :300-1500g
• Applied wire diameter : 0.35-0.80
• Tension Rod : TR-16#

Picture show:

MTAM

Coil Winding Machine Tensioner

Hangzhou Qianhe Precision Machinery Co., Ltd. was established in 2006, It is a national High-tech enterprise which specializing in the design and production of all kinds of automatic winding machine accessories. There three core advantages: 1. Servo tensioner and tension measurement ; 2.Air Nipper and winding fixture ; 3.Hard Alloy Winding Nozzle / guide needle .

For more than ten years, we hold the tenet of “integrity, pragmatism, innovation, and do global customer satisfaction”, and applies advanced quality management standards to the whole process of product realization, striving to create “high-hard and high- fine and more Excellent products.The three series of products have been widely used in the advanced automatic CNC winding equipment at home and abroad, and won the praise of the market and customers.

We are a national high- tech company ,with a mature R&D and management team ( obtained a number of patent certificates).with a group of skilled production technology backbone.the main management staff have more than 16 years of work experience in this field .We regard "Conscience, Ingenuity and Innovation" as the core of corporate culture, and promise to provide our customers with the most sincere, professional and quality services.

Mr. Zhang,General Manager

We have employees more than 100 and 3,000 square meters plants.The main management staff engaged in this field more than 10 years.we design and developed with four series products.

We produce all kinds of winding machine spare parts ,the main products are winding tensiner ,winding nozzle ,Air Nipper ,wire stripper ,tension meter and Ceramic pulleys.

Our winding tensioner working in different brand of winding machine and using in different fields.

We are a national high-paying technology company and have obtained a number of patent certificates.
