Coil Winding Tension Tension Controller

Tensioner is a necessary factor for keeping consistent winding accuracy.
Selecting better tensioner provides a sophisticated winding machine with best performance. Stabilized tensioner improves winding problems and enhances productivity. For example, stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of resistance, and increases credibility of the product.Perfect layer winding leads to material cost cutting and easy adjustment. Therefore, time and cost for machine maintenance can be decreased.
QIANHE Engineering has a wide range of tensioner types, from basic Magnetic type tensioners to servo motor tensioners.

I , Products Features
Our Magnetic Tensioner QH-MTC series with a wide range of tension, wide diameter, versatility, and other characteristics.
1, Vertical magnetic tensioner is generated by the permanent magnet , no mechanical friction, so can produce stable tension for a long time, and accuracy can get effective guarantee.
2, The freedom of the adjustment of the tension and back -tension, can be adapted to the side of the skeleton of the winding and sharp changes in the speed of the winding around the wire, will not produce a broken wire.
3, MTC Series Tensioner latest improvements:in the damping wheel and the guide wheel designed to install anti-jumper device
4, This Tensioner can choose a variety of the tension bar to meet the needs of different winding; can also custom-made according to the user's requirements , The default is the company's standard;
5, The drive wheel and guide wheel using fine polishing special ceramics, effectively avoid the wire winding mechanism damage the wire.
Guide wheelwith high-speed bearing original imported from Japan
6, Damping wheel with special rubber ring, wear-resisting and to prevent the wire damage
7, When the broken wire and the wire rod are used up, the detection device is informed by the disconnection detection device of the equipment, and the winding machine automatically stops(This section is optional)


Use matters needing attention:
1) If long tiem without using ,when the damping wheel jitter ,before starting please turning to degaussing process,first clockwise and then counterclockwise to adjust the maximum immediately to complete the degaussing
2) Adjust the tension knob (clockwise rotation tension increases, otherwise tension reduction), when working need use tension meter to measure the exact tension of the enameled wire,according to the need to adjust the tension adjustment knob, and note the corresponding knob scale value,easy to debug other product;
3) Adjust the anti-tensionadjustment knob, the knob is used to control the tension bar at work when the correct location, that is, the shell on the two red mark between the lines, while note down the corresponding anti-tension scale value of the cursor to facilitate debugging other products;
4) in the work process allows only by minor tension, prohibited by a small flat. When the tension required by the major hours must be adjusted in a stop state, so as to avoid breakage .



Model List

Tensioner test conditions :
Line speed is 10M/S, instant start, stop the continuous line, stable tension in the positive
and negative ±1%g.

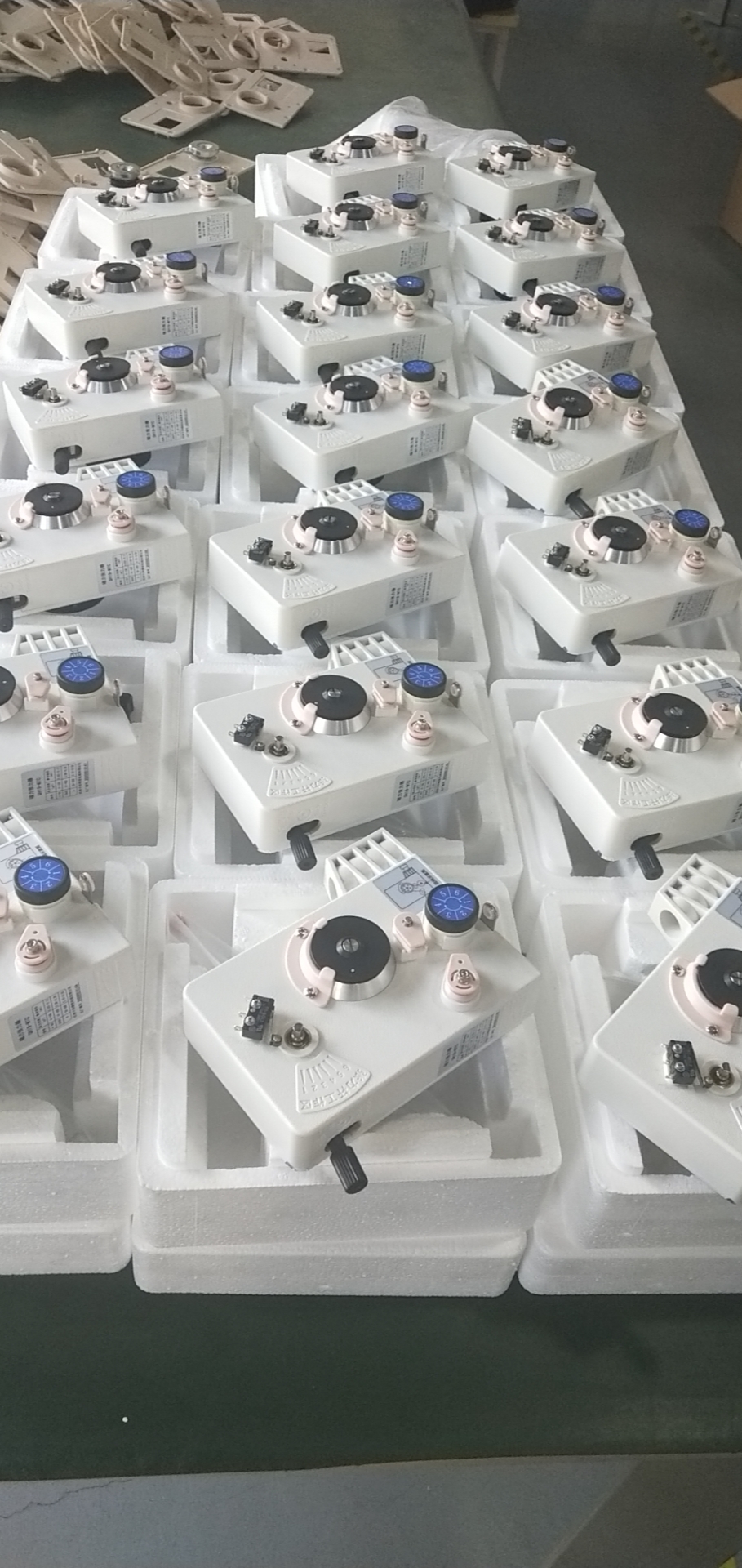

Picture show:
