COIL WINDING MAGNETIC TENSIONER WITH CYLINDER
Tensioner is a necessary factor for keeping consistent winding accuracy.
Selecting better tensioner provides a sophisticated winding machine with best performance.Stabilized tensioner improves winding problems and enhances productivity.For example, stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of resistance,
and increases credibility of the product.Perfect layer winding leads to material cost cutting and easy adjustment. Therefore,time and cost for machine maintenance can be decreased.
QIANHE Engineering has a wide range of tensioner types, from basic Magnetic type tensioners to servo motor tensioners.

MTQ Series
Magnetic Tensioner with Cylinder uses permanent magnets to control tension strength
by varying the gap in between the magnets and the main tension wheel.
The non-contact mechanism design provides stable, consistent and precise tension The non contact mechanism design provides
stable, consistence and precision tension to the wire. Excellence for both high and normal speed winding.

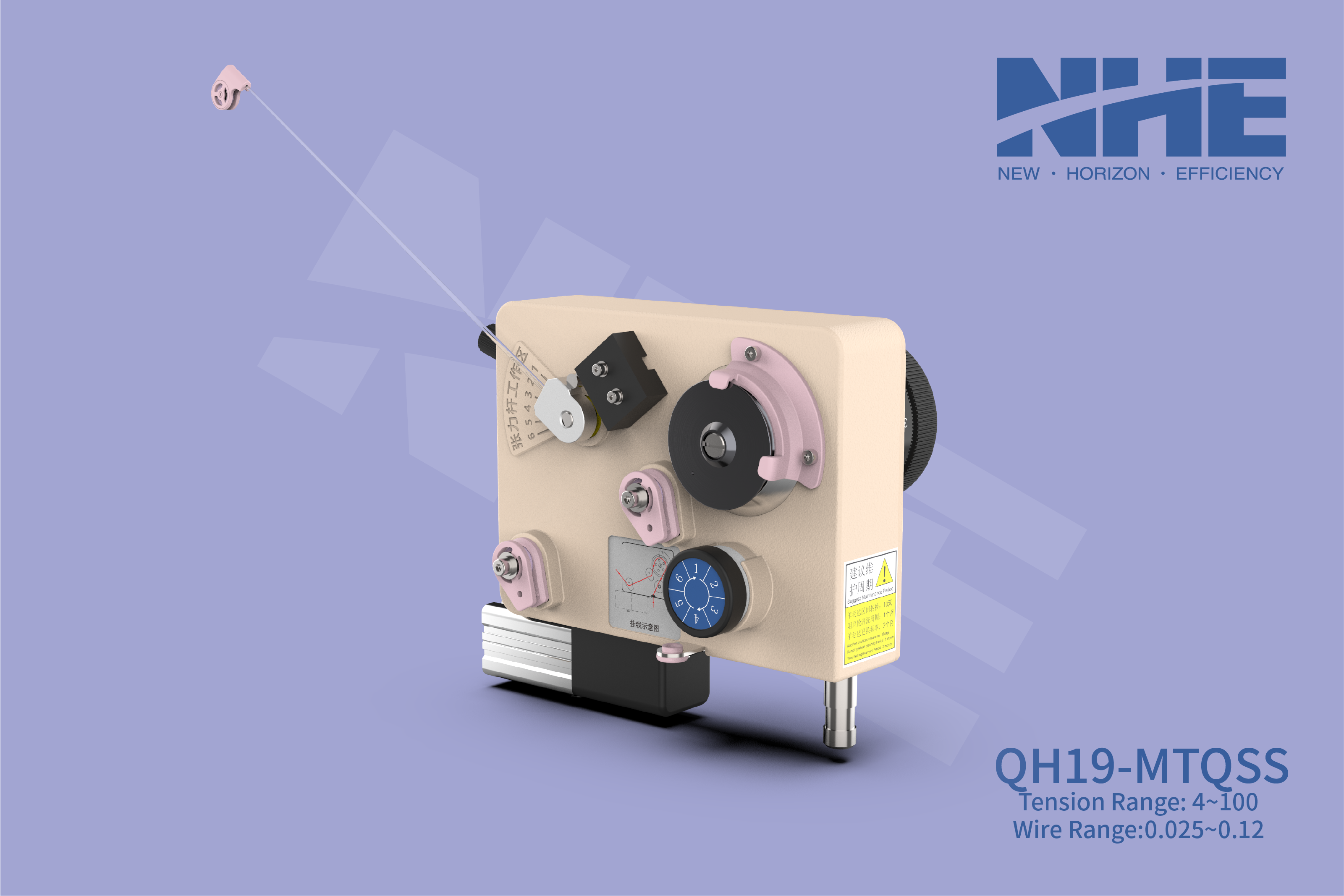

Coil winding magnetic tensioner with cylinder.

Features:
Because of the non-contact method, stable tension can be obtained on a long-term basis.
2. Adoption of ferrite magnet, is a variation of the product is very low.
3. Have excellent follow-up with respect to high-speed winding.
4. To back tension can be adjusted freely, the windings of the square-shaped bobbin, it is also compatible with rapid change in the winding speed, does not have to be disconnected.
5. Tension is easy to set by direct reading scale with dial.
6.Disconnection of course, disconnection detection device which automatically stop the winding machine even if the wire is no longer is standard equipment.
Basic Specifications of MTQ series:

Wire speed is 10m/s, instant start ,stop the continuous line ,stable tension is ± 1%

Hanging Line Diagram :



Picture show:
