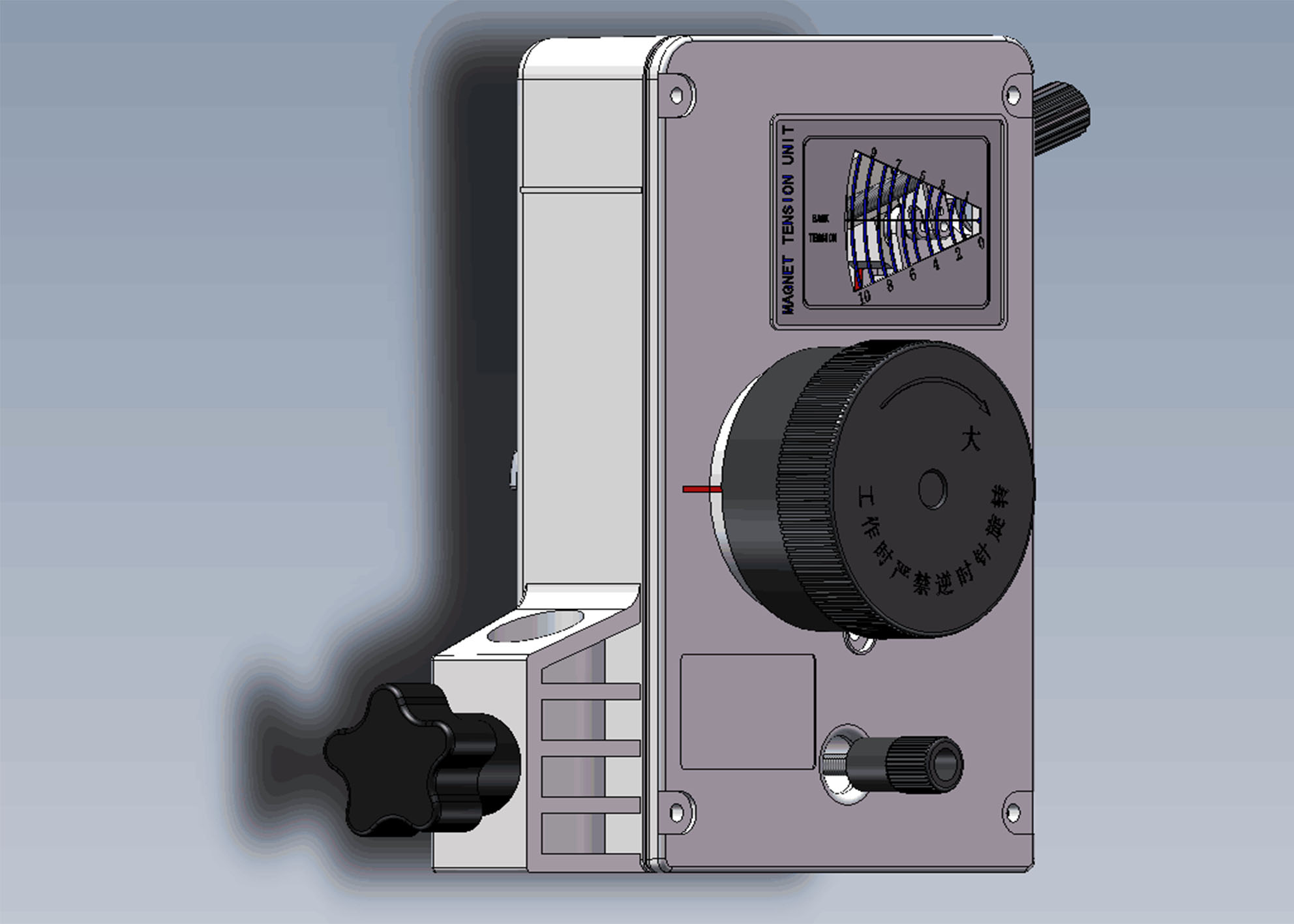

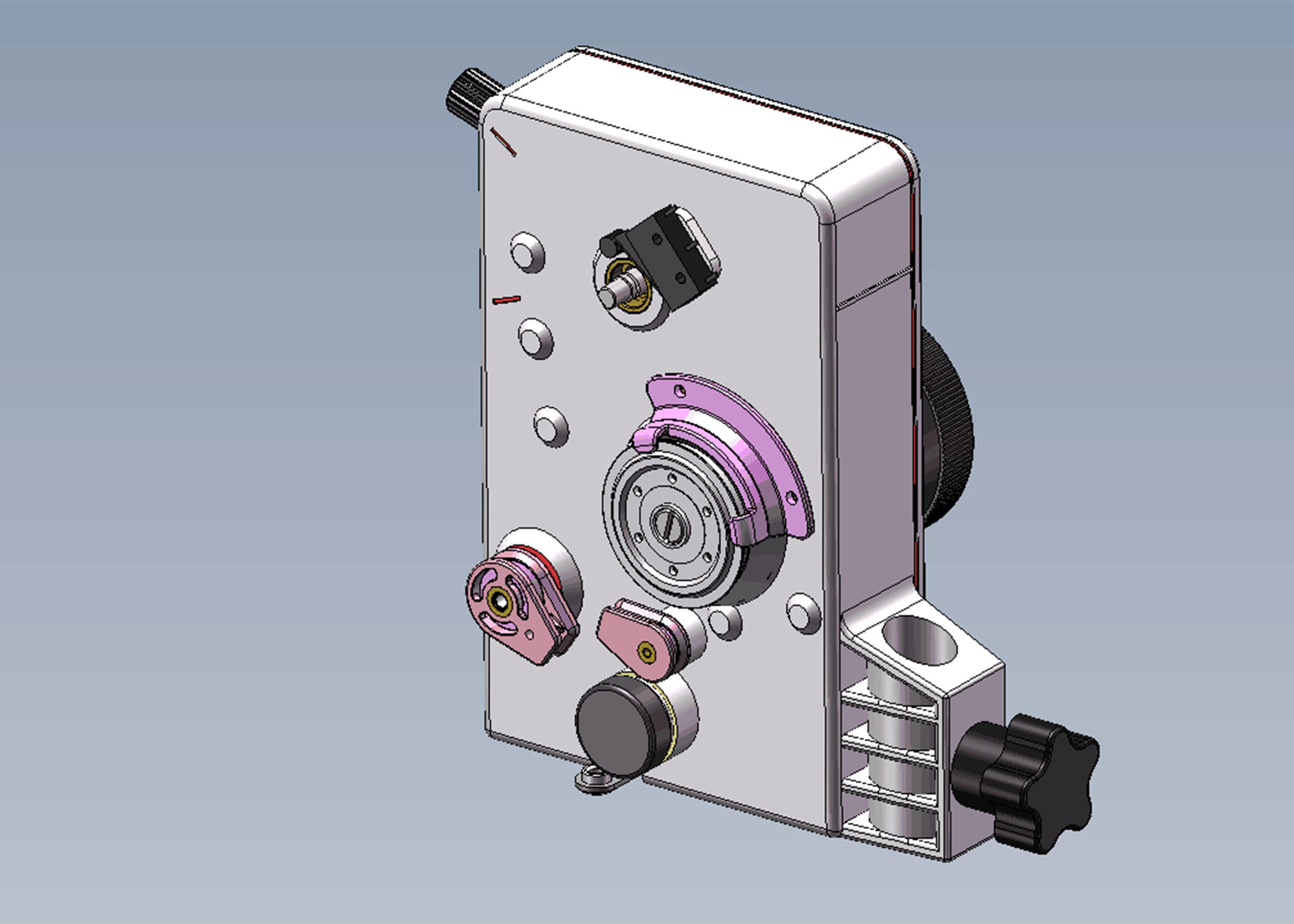

Wire Tension Device Controller QH-MTCS 30-800g For Doing High Frequency Transformer

Coil Winding Tension Device

We are specicalized in coil winding mahince tensioners,

Such as Magnetic tensioner and servo tensioner

with high quality and the most competitive price in china.

Our wire tensioners can be used on almost any brand of coil winding machine,

and most models can be fitted with a microswitch for detection of broken winding wires

on request .

Descriptions
The coil winding magnetic tensioner can be used for tension control during the winding process of various wires such as enameled wire, nylon wire, metal wire etc. It can be used to produce coils ,transformer ,stator , motor ,and some other products when specifically matching with the winding machine.

Comparatively speaking, this tensioner has a simple structure and low cost. It is one of the most widely used tensioners on the market.

Features
1. The quality of the magnetic tensioner is decided by two key parts: one is the magnet and the other is the bearing.
Magnet: Generally speaking, the more pairs of magnets you use, the better precision you will get. And Qianhe adopts up to 16 pairs of high strength permanent magnets. Then it can create damping through magnetic field transformation and torque changing. It has no mechanical friction as well so that it can generate long term and stable tension. On the other side, we adopt a high strength magnet so that the tension range of the tensioner can be greater and the application range can be wider.
* Bearing: Qianhe adopts NMB high quality bearing with smaller resistance and longer service life.

2. Groove design: this can effectively prevent jumping wire during production to ensure finished product quality.

3. Each set of product should be strictly tested before delivery to ensure absolute precision uniformity of the tension scale and tension degree value. When one winding machine requires multiple tensioners at the same time, this will be convenient for debugging and installation of the operators.

4. When the winding machine works normally, the tension should keep pace with back tension. Our tensioner is equipped with a manual nobble which can be used to adjust the value of back tension, so that the adjustment from the operators can be free. So the winding machine can be used for winding which should adapt to square frame or of which the winding speed changes rapidly without causing wire breaking.

5. The specification of the tension arm can be selected according to customer requirements.

Model List

Picture show:

The 17th Shenzhen (China) International Small Motor ,Electric Machinery & Magnetic Materials Exhibition

Hangzhou Qianhe Precision Machinery Co., Ltd. was established in 2006, It is a national High-tech enterprise which specializing in the design and production of all kinds of automatic winding machine accessories. There three core advantages: 1. Servo tensioner and tension measurement ; 2.Air Nipper and winding fixture ; 3.Hard Alloy Winding Nozzle / guide needle .

For more than ten years, we hold the tenet of “integrity, pragmatism, innovation, and do global customer satisfaction”, and applies advanced quality management standards to the whole process of product realization, striving to create “high-hard and high- fine and more Excellent products.The three series of products have been widely used in the advanced automatic CNC winding equipment at home and abroad, and won the praise of the market and customers.

We are a national high- tech company ,with a mature R&D and management team ( obtained a number of patent certificates).with a group of skilled production technology backbone.the main management staff have more than 16 years of work experience in this field .We regard "Conscience, Ingenuity and Innovation" as the core of corporate culture, and promise to provide our customers with the most sincere, professional and quality services.

Mr. Zhang,General Manager

We have employees more than 100 and 3,000 square meters plants.The main management staff engaged in this field more than 10 years.we design and developed with four series products.

We produce all kinds of winding machine spare parts ,the main products are winding tensiner ,winding nozzle ,Air Nipper ,wire stripper ,tension meter and Ceramic pulleys.

Our winding tensioner working in different brand of winding machine and using in different fields.
