Servi Tensioner /Winding Tensioner (2-800gf ) For Fine Wire Coil , Relay , Ignition Coils

High Precision Coil Winding Servo Motor Tensioner

Tensioner is a necessary factor for keeping consistent winding accuracy.
Selecting better tensioner provides a sophisticated winding machine with best performance.
Stabilized tensioner improves winding problems and enhances productivity. For example,

stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of

resistance, and increases credibility of the product.
Perfect layer winding leads to material cost cutting and easy adjustment. Therefore, time and cost

for machine maintenance can be decreased.
QIANHE Company has a wide range of tensioner types, from basic Magnetic type tensioners to

servo motor tensioners.

Features:

The servo tensioner uses a DC Servo Motor and a Drive as an active wire feeding mechanism.

Its mainfeatures are as following:
1, Follow the speed of the winding machine and actively wire feeding ;
2, DC Servo Motor with High Precision Encoder and Advanced Driving Technology:
A,High tracking accuracy, high tension stability, acceleration and deceleration up to 0.3s；
B,High speed, large torque, large tension range, simple selection;
C, High efficiency, energy saving and low power consumption, motor and drive work for

a long time with very low heating, no need heat dissipation;
D. Stable online measurement function;
E,It can directly adjust the parameters of the motor and the working angle of tension arm by

connecting the USB interface of tensioner with PC software. It is suitable for winding various

coil products of various winding machines.
3. The tension range is 2-2000 gf and the suitable diameter is 0.02-0.80 mm.

Note: 485 Modbus RTU communication protocol: baud rate 115200, data 8 bits, no parity,
1 stop.Using the tension value signal provided by the machine to communicate with
the winding machine can realize the functions of tension data acquisition and upper
and lower limit setting.

Specification :

Main parameters

The Product Electrical Characteristics
1,Power Supply: 24-48V
2,Rated Power:100W/200W
3,Rated Current:2.7A/5.5A；working current is less than 0.5A
4,Anti-reverse connection: can withstand 48V reverse connection; anti-surge;

can withstand 600V voltage1ms impact
5,Continuous working time: continuous

Picture Display:

Thank you for choosing our products,in order for your proper using ,please read and keep

this instructions carefully before use .

�.Please read the contents of this manual before using this product.

�.Please use the products according to the instructions and careful operation, other

method beyond the provisions of this specification,will impact the products safety ,service life.

�. In this manual, the technical specifications are subject to change without prior notice;

�. Resolutely resist unauthorized reprinting of the contents of this manual;

�. If there are any omissions or mistakes in this instruction, please forgive us. any questions

contact us in time.

�.This products with strict,inspection before out of factory ,if any questions please contact us in time .

Hangzhou Qianhe Precision Machinery Co., Ltd. was established in 2006, It is a national High-tech enterprise which specializing in the design and production of all kinds of automatic winding machine accessories. There three core advantages: 1. Servo tensioner and tension measurement ; 2.Air Nipper and winding fixture ; 3.Hard Alloy Winding Nozzle / guide needle .

For more than ten years, we hold the tenet of “integrity, pragmatism, innovation, and do global customer satisfaction”, and applies advanced quality management standards to the whole process of product realization, striving to create “high-hard and high- fine and more Excellent products.The three series of products have been widely used in the advanced automatic CNC winding equipment at home and abroad, and won the praise of the market and customers.

We are a national high- tech company ,with a mature R&D and management team ( obtained a number of patent certificates).with a group of skilled production technology backbone.the main management staff have more than 16 years of work experience in this field .We regard "Conscience, Ingenuity and Innovation" as the core of corporate culture, and promise to provide our customers with the most sincere, professional and quality services.

Mr. Zhang,General Manager

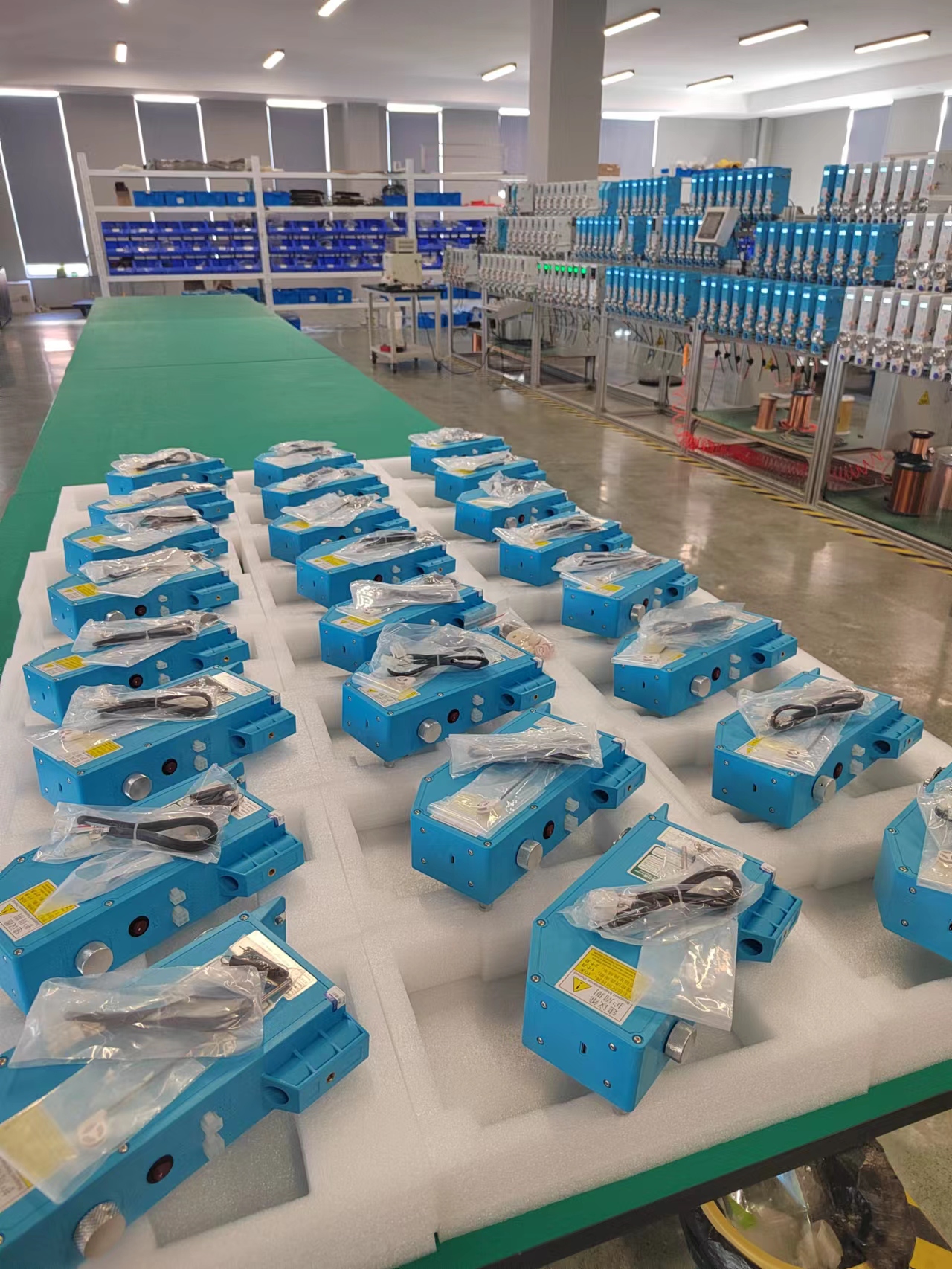

We have employees more than 100 and 3,000 square meters plants.The main management staff engaged in this field more than 10 years.we design and developed with four series products.
