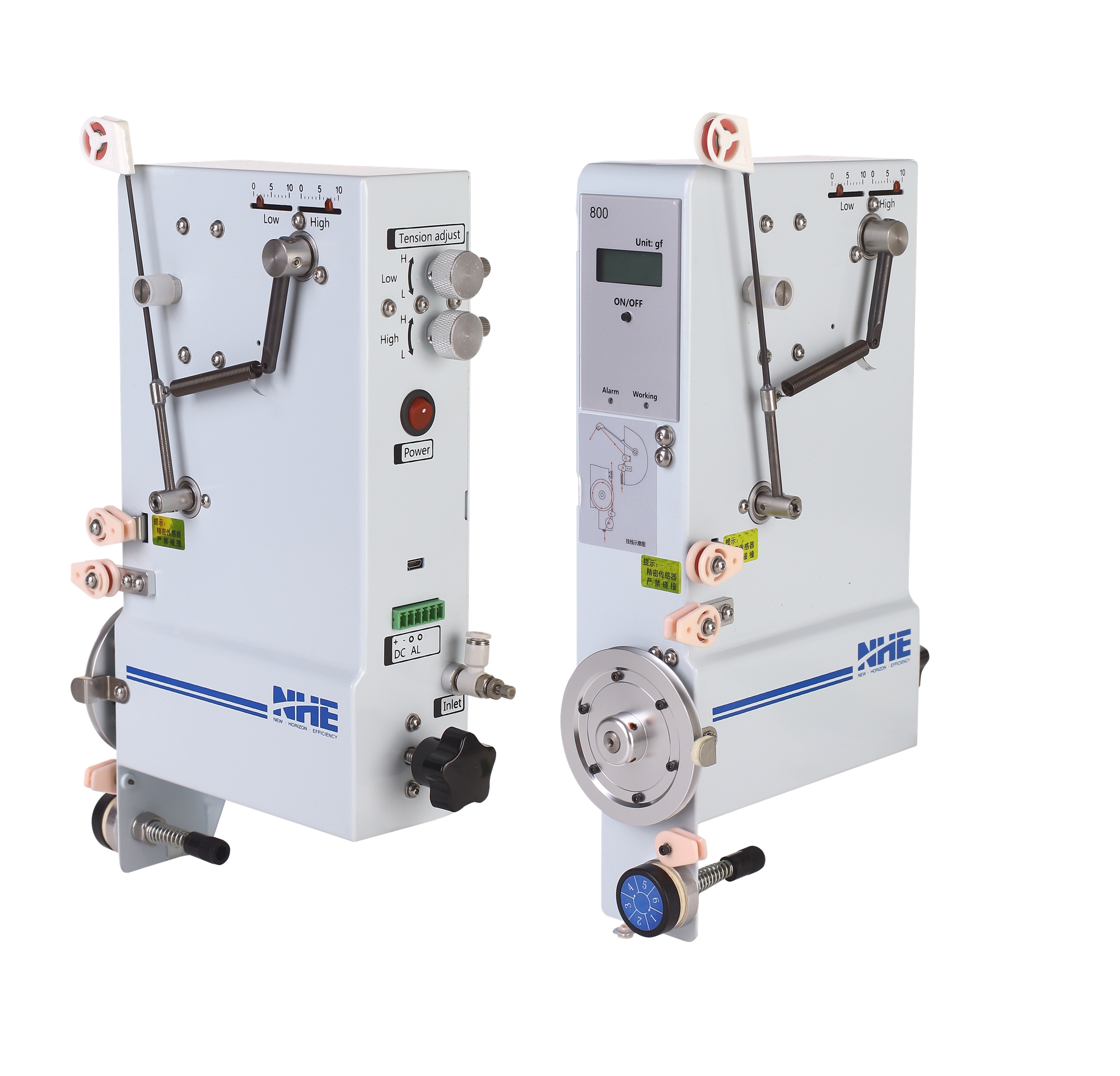

    Realtime Display Coil Winding Wire Tensioner With Dc Servo Motor

    Coil Winding Wire Tensioner With Tension Realtime Display SFD800-CL Precision Encoder Dc Servo Motor

    SERVO WIRE TENSIONERS - WITH TWO STAGE OF TENSION VALUE


    Wire tension is one of the most critical parameters of any coil winding process, having an influence on product characteristics, particularly DC resistance of the wire. Wire tension control devices are therefore required to ensure constant wire tension as the wire speed changes during the coil winding process.

    Selecting better tensioner provides a sophisticated winding machine with best performance.
    Stabilized tensioner improves winding problems and enhances productivity. For example,

    stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of

    resistance, and increases credibility of the product.
    Perfect layer winding leads to material cost cutting and easy adjustment. Therefore, time and cost

    for machine maintenance can be decreased.
    QIANHE Company has a wide range of tensioner types, from basic Magnetic type tensioners to

    servo motor tensioners.


    Products Introduction :


    The SF series servo tensioner features pulse motor as the source of torque control torque, its sensitive and quick response feedback control system, providing precise, stable and consistent tension for high speed quality winding. Selected models of this series come with real-time tension measurement and display, provides a clear and convenient way to observe the winding tension, aiding in better control of product quality.


    - High speed operation under high torque conditions, Stable tension

    - Wide selection of wire travel speed, maximum 20 m/s


    Features:

    The servo tensioner uses a DC Servo Motor and a Drive as an active wire feeding mechanism.

    Its mainfeatures are as following:
    1, Follow the speed of the winding machine and actively wire feeding ;
    2, DC Servo Motor with High Precision Encoder and Advanced Driving Technology:
    A, High tracking accuracy, high tension stability, acceleration and deceleration up to 0.3s;
    B, High speed, large torque, large tension range, simple selection;
    C, High efficiency, energy saving and low power consumption, motor and drive work for a long time with
    very low heating, no need heat dissipation;
    D. Stable online measurement function;
    E, It can directly adjust the parameters of the motor and the working angle of tension arm by connecting
    the USB interface of tensioner with PC software. It is suitable for winding various coil products of various
    winding machines.
    3. The tension range is 2-2000 gf and the suitable diameter is 0.02-0.80 mm.


    Servo Tension Controller

    Applications

    -Widely used in motor coil,drive coil,transformer coils,relay coils,voice coil,inductance,resistance wire,textiles and other equipment around the system.


    Specification :

    Part.No.Product ModelMaximum wire speedTension StageTension ScopeApplied wire diameterTension Rod
    (g)(mm)
    1SF60018m/sone stage2-6000.02-0.28

    SF-1#

    SF-2#

    SF-3#
    SF-4#

    2SF80018m/stwo stage2-8000.02-0.4
    3SFD20009m/stwo stage300-20000.2-0.8SF-5#

    Main parameters


    Product ModelPowerPowerInput Air PressureMounting HoleWeightProduct Size
    SF600DC48V100W/Ф 16mm2.0kg265*170*75(mm)
    SF8005kg/cm ²2.5kg310*170*85(mm)
    SFD200200W3.7kg350*195*90(mm)

    The Product Electrical Characteristics
    1, Power Supply: 24-48V
    2, Rated Power:100W/200W
    3, Rated Current:2.7A/5.5A;working current is less than 0.5A
    4, Anti-reverse connection: can withstand 48V reverse connection; anti-surge;

    can withstand 600V voltage1ms impact
    5, Continuous working time: continuous

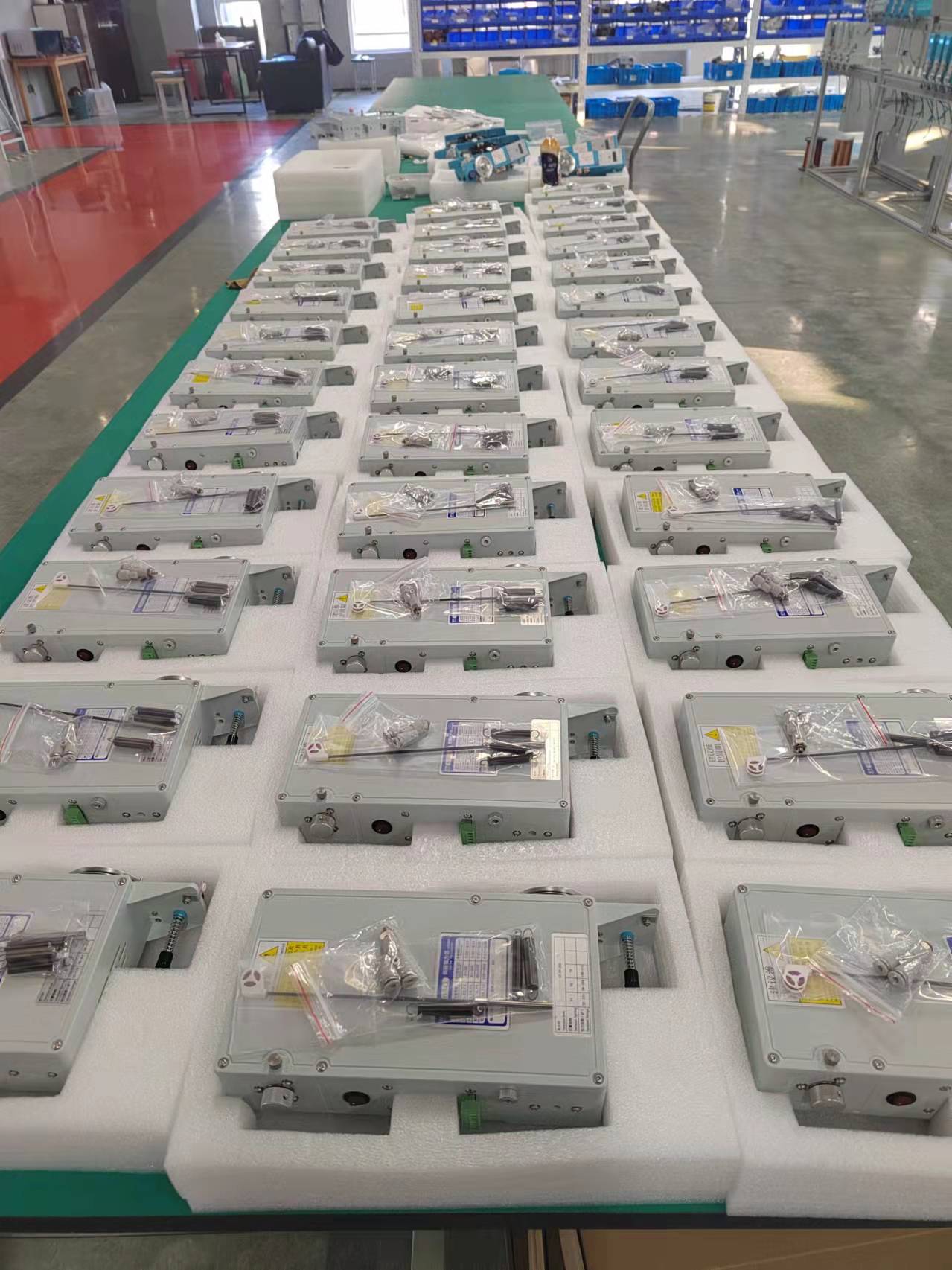

    Picture Display:




    Why do you choose us?
    1. 100% manufacturer
    In hardware tools, the wire winding machine training industry has more than 10 years of

    experience, we have more than and 100 skilled workers.
    2. competitive price
    One-stop service, from the material of die cutting process, production, QC, packaging,

    delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many
    customers are very happy to cooperate with us, because we can provide a more competitive
    price as a factory.
    3, The best choice of material
    All of our goods are the best material from the best suppliers, whether the material is qualified

    can be checked.
    4. Quality Control
    Before shipment, there are specialized personnel checks, each product in the packaging before

    the inspection is qualified. We guarantee that each product shipment is perfect for sale.
    5. Good service
    We promise to answer your question in 24 hours.
