High Precision Coil Winding Servo Motor Tensioner

Tensioner is a necessary factor for keeping consistent winding accuracy.
Selecting better tensioner provides a sophisticated winding machine with best performance.
Stabilized tensioner improves winding problems and enhances productivity. For example,

stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of

resistance, and increases credibility of the product.
Perfect layer winding leads to material cost cutting and easy adjustment. Therefore, time and cost

for machine maintenance can be decreased.
QIANHE Company has a wide range of tensioner types, from basic Magnetic type tensioners to

servo motor tensioners.

I, product features

1,SF600

Single stage tension adjustable.

Wire break alarm, fault alarm.

One loop passing structure.

2,SF800, SFD800

SF800 single stage tension adjustable; SFD800 two stage tension adjustable.

Online display of tension value, winding speed, and winding length.

There are one or half turns of wire pass.

Multiple function alarm: wire broken alarm, fault alarm,tension upper/lower limit alarm function.

Multi functional "menu knob" to adjust parameters such as tension value reset, tension upper/lower limit setting, servo motor status, etc.

RS485 networking communication can achieve real-time reading of tension values, setting the upper/lower limit of tension, changing the working angle of the tension rod, tension calibration and compensation, and reading the winding length.

The system is equipped with current overload protection for the servo motor, which returns to normal after power outage and restart.

The Product Electrical Characteristics
1,Power Supply: 24-48V
2,Rated Power:100W/200W
3,Rated Current:2.7A/5.5A；working current is less than 0.5A
4,Anti-reverse connection: can withstand 48V reverse connection; anti-surge;

can withstand 600V voltage1ms impact
5,Continuous working time: continuous

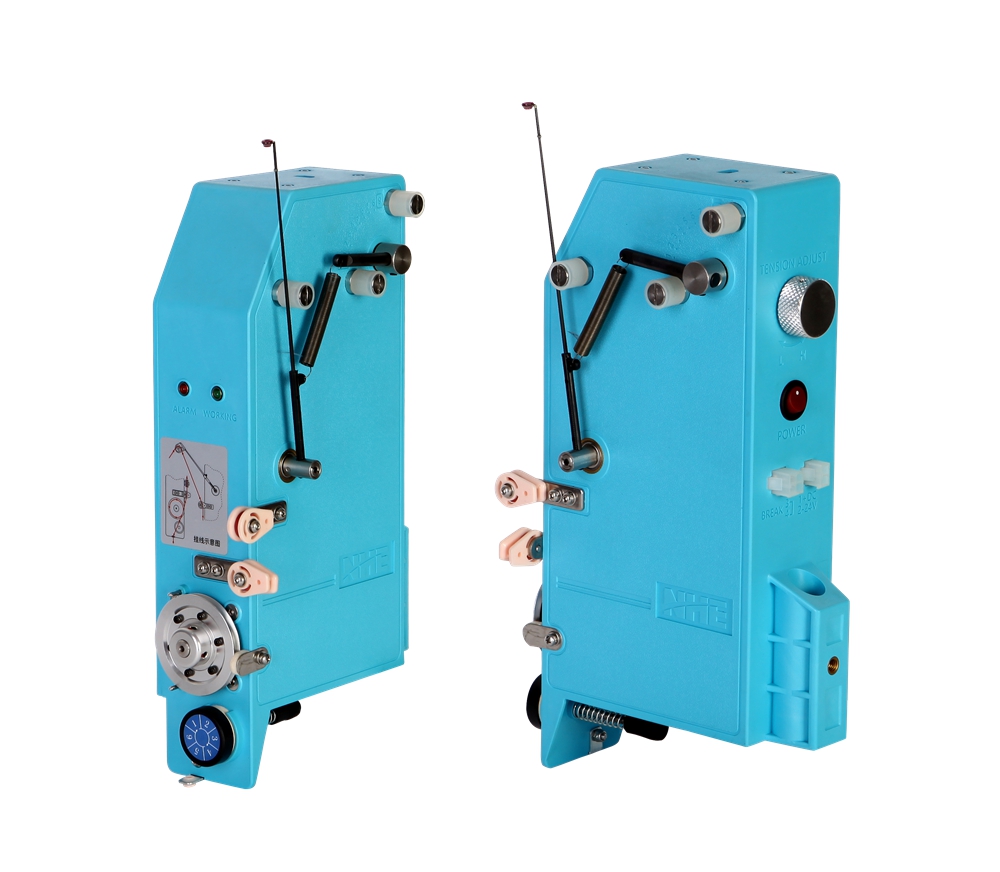

Picture Display:

Thank you for choosing our products,in order for your proper using ,please read and keep

this instructions carefully before use .

�.Please read the contents of this manual before using this product.

�.Please use the products according to the instructions and careful operation, other

method beyond the provisions of this specification,will impact the products safety ,service life.

�. In this manual, the technical specifications are subject to change without prior notice;

�. Resolutely resist unauthorized reprinting of the contents of this manual;

�. If there are any omissions or mistakes in this instruction, please forgive us. any questions

contact us in time.

�.This products with strict,inspection before out of factory ,if any questions please contact us in time .
