Stable tension and fast speed Servo Tensioner for Ф 0.02mm-0.25 mm Enameled Copper wire For NITTOKU CNC Coil winder

Servo Tensioner (ST400/700 Series)

Product Features:

1. Feed the wire automatically ,and all using high-precision encoder servo motor,

It has the following advantages than which using stepper motor as the wire

feeding mechanism.

A,With high precision ,stable tension and fast speed ,from zero to the maximum

speed it can be done within 0.3s

B,High speed torque,so with big tension range then easy to select type

C,Low Noise

2,Tension is adjusted by electric drive ,just press the button to adjust the tension

to increase or decrease.

3,Rated maximum wire speed respectively are 8m/s ,12m/s ,20m/s , The user can

set ans maximum wire speed under the rated maximum of the selected models.

4,Display last product winding length ,by adjusting the tension value can truly ensure

the consistent winding length of each product.

5,Provide on stage tension and two stage tension control .

Main Parameters:

Voltage : DC24V

Power : 50W (8,12m/s)

Input Air pressure :5kg/cm ²

Mounting hole : Ф 16mm

Weight : 2.4kg

Product size :240*120*70(mm)

Note :

• Please reading the product instruction carefully before using .
• Please using the tension rod and coresponding tension spring corectly according to the tension
• Please hang the line according to the drawing and turn off the power

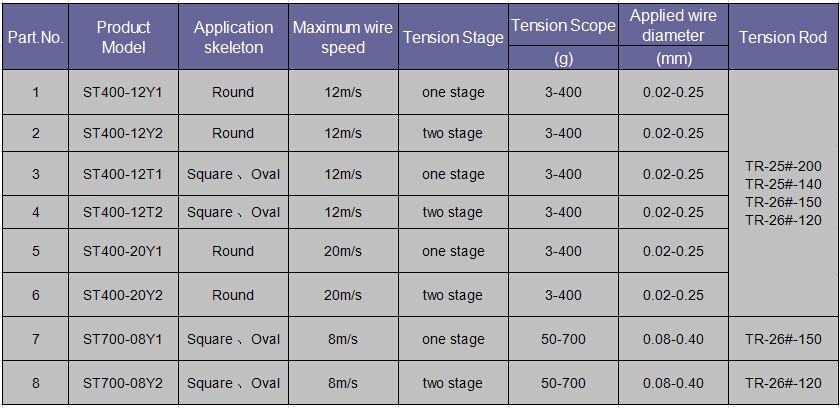

Specification :

The tension rod spring with corresponding tension range:

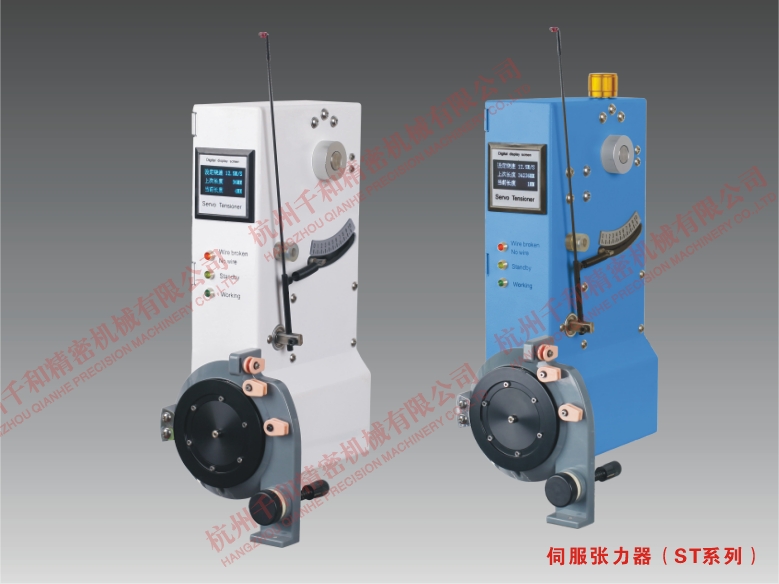

Picture show :

ST400-12Y1

ST400-20Y2
