Magnetic Tension Device Coil Winding Machine Tensioner

Product Description:

The MTC series is produced by the change of the torque of the magnetic field,

which is produced by the change of the torque, which has no mechanical friction,

so it can generate stable tension for a long time, and the precision can be guaranteed

effectively.

The freedom of the adjustment of the tension, can be adapted to the side of the

skeleton of the winding and sharp changes in the speed of the winding around the wire,

will not produce a broken wire. When the broken wire and the wire rod are used up,

the detection device is informed by the disconnection detection device of the equipment,

and the winding machine automatically stops. This series of tension device is an upgraded

version of mechanical series, the use of double break alarm mechanism, the internal

increase of the photoelectric detection of broken wire alarm,

and the use of indicator light shows that the overall structure is more scientific and firm.

Key advantages of Magnetic wire tensioners:

These magnetic tensioners use a device containing a permanent magnet as a

non-contact method of generating a variable resistance to rotation of the main

wheel of the tensioner, thus maintaining wire tension at the set value for longer

periods than their mechanical counterparts with greatly reduced requirement for

adjustment.

• Polished ceramic eyelets and guide rollers at each point of contact protect the insulating enamel from mechanical damage.
• The performance of these magnetic wire tensioners is exceptional given the low cost,
• providing outstanding value for money.
• Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

Information of our Factory :

Hangzhou Qianhe Precision Machinery CO.,LTD is professional manufacturer for coil winding

tensioner with more10 years experience in this field . We offer Servo tensioner, Magnetic tensioner

and electronic tensioner at competitive price. Our products are widely acclaimed for their quality

such as durability , smooth finish and optimum performance by our clients .

Specification :

Hanging line diagram

Tensioner test conditions :

Wire speed is 10M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.

Key features of Type MTCSS :

• Tension Scope :30-80g
• Applied wire diameter : 0.08-0.40
• Tension Rod : TR-32#

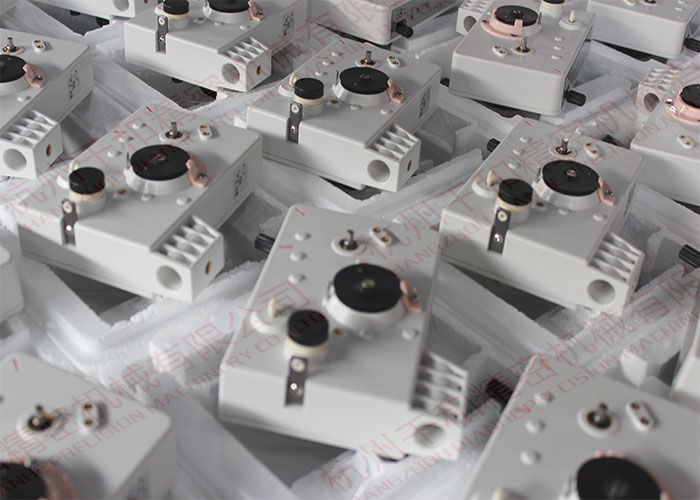

Picture show:

Advantages of this Coil Winding Magnetic Wire Tensioner

1. Excellence for both high and normal speed winding.

2. Stable and consistence tension control

3. Non wire breakage

4. longer service life and competive prices

Hangzhou Qianhe Precision Machinery Co., Ltd. was established in 2006, It is a national High-tech enterprise which specializing in the design and production of all kinds of automatic winding machine accessories. There three core advantages: 1. Servo tensioner and tension measurement ; 2.Air Nipper and winding fixture ; 3.Hard Alloy Winding Nozzle / guide needle .

For more than ten years, we hold the tenet of “integrity, pragmatism, innovation, and do global customer satisfaction”, and applies advanced quality management standards to the whole process of product realization, striving to create “high-hard and high- fine and more Excellent products.The three series of products have been widely used in the advanced automatic CNC winding equipment at home and abroad, and won the praise of the market and customers.

We are a national high- tech company ,with a mature R&D and management team ( obtained a number of patent certificates).with a group of skilled production technology backbone.the main management staff have more than 16 years of work experience in this field .We regard "Conscience, Ingenuity and Innovation" as the core of corporate culture, and promise to provide our customers with the most sincere, professional and quality services.

Mr. Zhang,General Manager

We have employees more than 100 and 3,000 square meters plants.The main management staff engaged in this field more than 10 years.we design and developed with four series products.

We produce all kinds of winding machine spare parts ,the main products are winding tensiner ,winding nozzle ,Air Nipper ,wire stripper ,tension meter and Ceramic pulleys.

Our winding tensioner working in different brand of winding machine and using in different fields.

We are a national high-paying technology company and have obtained a number of patent certificates.
