| Brand Name : | QIANHE |
| Model Number : | SF200-I |
| Price : | US$500-US$1000per set |
| Payment Terms : | T/T, Western Union ,Paypal |
| Supply Ability : | 500 set per month |
| Delivery Time : | 3-15 working days |
Specifications
Servo Type tension device is sent from the traditional passive-line
change to take the initiative to send wires from the motor,by
replacing the spring tension to change its value,this product comes
with tension feedback stabilization system that can automatically
tension stable equilibrium. Tension is not speed,wire cover,pulleys
and felt the impact of tension in particular stable and easy to
adjust.
-Widely used in motor coil,drive coil,transformer coils,relay coils,voice coil,inductance,resistance wire,textiles and other equipment around the system.
Features of Coil Winding Tensioner Servo Tensioner
1. Servo tensioner unlike traditional tensioning methods,Servo tension device feed the
wire automatically depends on the winding requirement.
2. The tension generate by servo controlled tensiner is very much more stable
and consistence,compare with mechanical or magnetic type.
3. Tension can be set from 3.0g to 2000g,it depends on the model.
4. Servo motor and control system are all packed within the body,SF series is solid
and compact in design.It operates with DC36V electric power.
| Servo Tensioner | |||||||
| Part.No | Tensioner model | Tension range (g) | Wire range (mm) | Tension bar model | Spring | Tension bar head structure | Tension rod size |
| 1 | SF50-Ⅰ/II | 3~50 | 0.02~0.08 | SF-1# | T1,T2,T3 | Ceramic Eylet/Ruby ,Wire Roller(S) | Φ0.8*Φ2*150 |
| 2 | SF100-Ⅰ/II | 25~100 | 0.05~0.12 | SF-2# | T3,T4,T5 | Ruby / Wire Roller(M) | Φ1.5*Φ2*200 |
| 3 | SF200-Ⅰ/II | 50~200 | 0.08~0.17 | SF-3# | T4,T5,T6 | Ruby / Ceramic Pulley(005)/Wire Roller(M) | Φ1.5*Φ4*200 |
| 4 | SF400-Ⅰ/II | 100~400 | 0.12~0.25 | SF-4# | T5,T6,T8 | Ruby / Ceramic Pulley(005)/Wire Roller(L) | Φ2.0*Φ4.0*150 |
| 5 | SF800-Ⅰ/II | 300~800 | 0.21~0.37 | SF-5# | T8,T9 | Ceramic Pulley(S)/Wire Roller(L) | Φ2.0*Φ4.0*120 |
| 6 | SF2000-II | 500~2000 | 0.3~0.8 | TR-28# | TDM-B/C/D | Ceramic Pulley(M) | Φ4.0*120 |
Main parameters
| Product Model | Power | Power | Input Air Pressure | Mounting Hole | Weight | Product Size |
| SF--I | DC36V | 100W | / | Ф 16mm | 2.0kg | 290*130*58(mm) |
| SF--II | 5kg/cm ² | 2.5kg | 293*130*62(mm) | |||
| ST2000-II | 200W | 3.7kg | 350*195*90(mm) |
Dimensional drawing
Product Structure

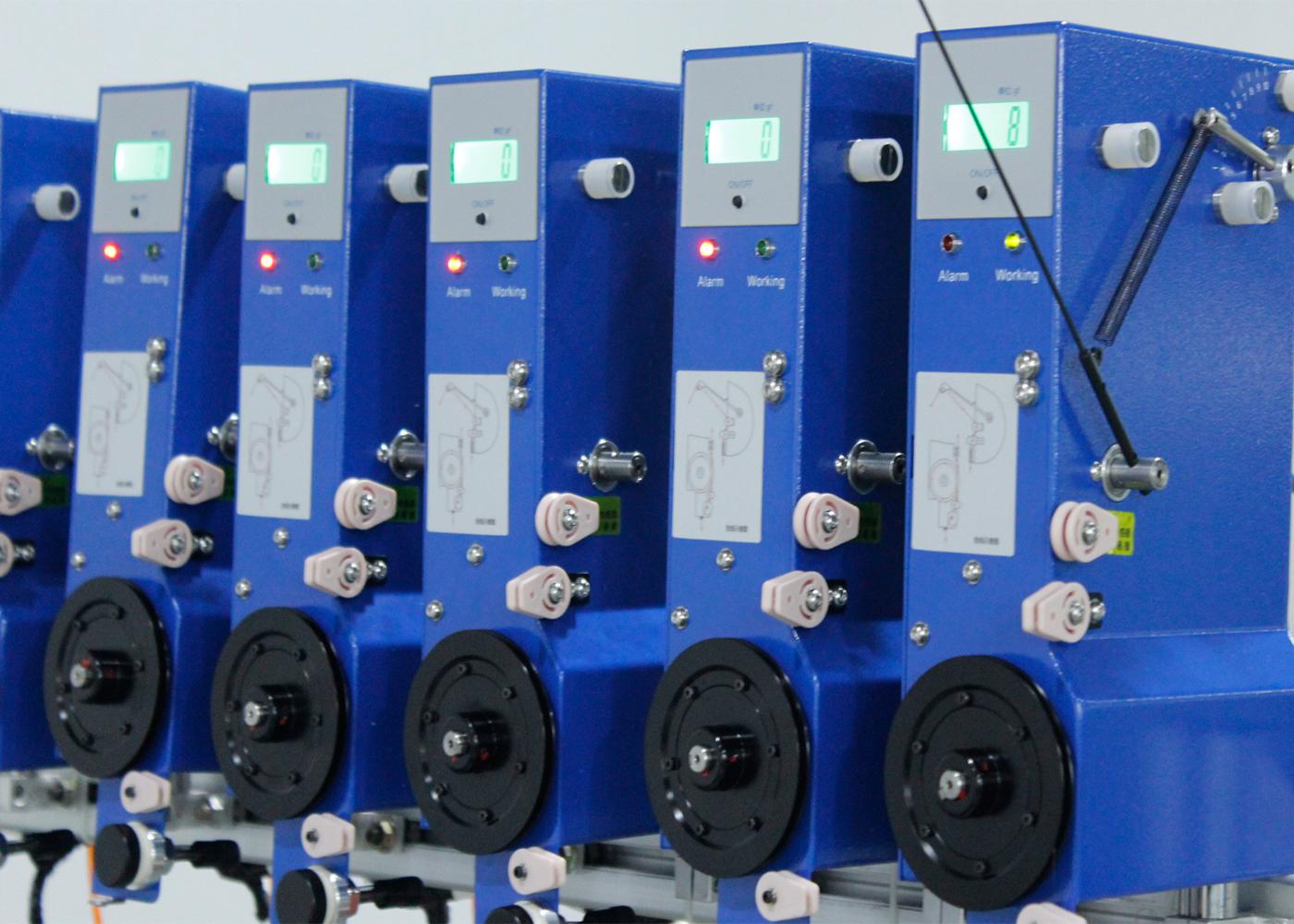

Picture Display:
