High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
Description:
The SF series features high speed closed loop servo tensioners with
a maximum wire-feeding speed of 18 meters per second. Its high
speed/high torque DC servo motor and built-in Adaptive Speed
Control software provides fast response to rapid changes in coil
winding speed and a wide tension range for high speed precision
winding. It features a large screen HD LCD panel for multiple data
settings and display. Standard configurations for this series
include a built-in tension measurement system
Advantages:
1. Precise, stable and consistent tension for hi-speed precision winding
2. Two stage tension setting
3. Clear multiple data display: real-time tension, real-time wire speed and real-time wire length.
4. Tension range preset function (upper and lower tension limit) with alarm output.
5. Real-time communication with host computer, collect and record winding data (tension diagram, wire length, wire travel speed etc)
Product Details
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hangzhou in China |
| Packaging Details: | 1set/box |
Secification :
| Servo Tensioner | |||||||
| Part.No | Tensioner model | Tension range (g) | Wire range (mm) | Tension bar model | Spring | Tension bar head structure | Tension rod size |
| 1 | SF50-Ⅰ/II | 3~50 | 0.02~0.08 | SF-1# | T1,T2,T3 | Ceramic Eylet/Ruby ,Wire Roller(S) | Φ0.8*Φ2*150 |
| 2 | SF100-Ⅰ/II | 25~100 | 0.05~0.12 | SF-2# | T3,T4,T5 | Ruby / Wire Roller(M) | Φ1.5*Φ2*200 |
| 3 | SF200-Ⅰ/II | 50~200 | 0.08~0.17 | SF-3# | T4,T5,T6 | Ruby / Ceramic Pulley(005)/Wire Roller(M) | Φ1.5*Φ4*200 |
| 4 | SF400-Ⅰ/II | 100~400 | 0.12~0.25 | SF-4# | T5,T6,T8 | Ruby / Ceramic Pulley(005)/Wire Roller(L) | Φ2.0*Φ4.0*150 |
| 5 | SF800-Ⅰ/II | 300~800 | 0.21~0.37 | SF-5# | T8,T9 | Ceramic Pulley(S)/Wire Roller(L) | Φ2.0*Φ4.0*120 |
| 6 | SF2000-II | 500~2000 | 0.3~0.8 | TR-28# | TDM-B/C/D | Ceramic Pulley(M) | Φ4.0*120 |
Main parameters
| Product Model | Power | Power | Input Air Pressure | Mounting Hole | Weight | Product Size |
| SF--I | DC36V | 100W | / | Ф 16mm | 2.0kg | 290*130*58(mm) |
| SF--II | 5kg/cm ² | 2.5kg | 293*130*62(mm) | |||
| ST2000-II | 200W | 3.7kg | 350*195*90(mm) |
Dimensional drawing
Product Structure

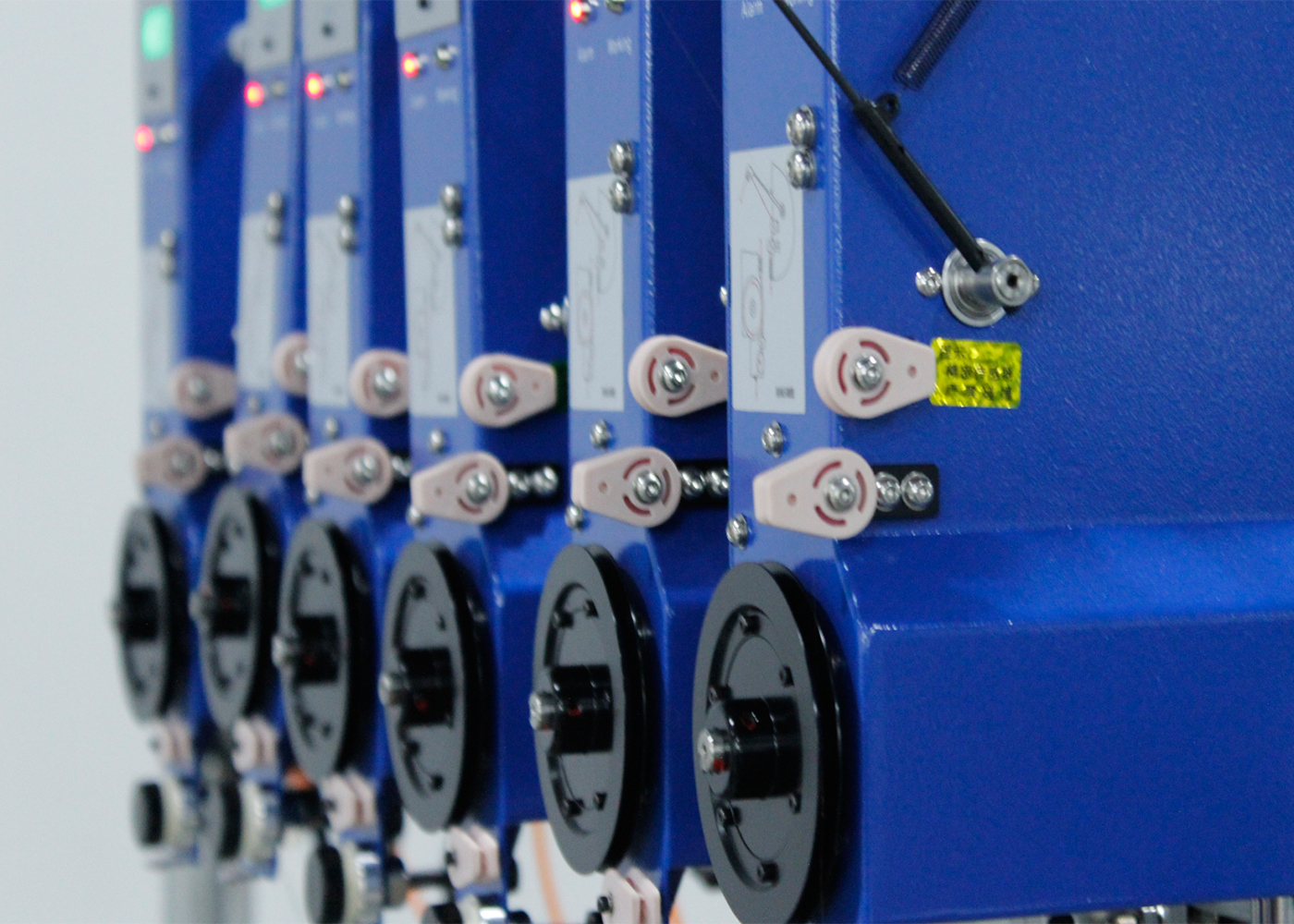

Picture Display:
Delivery and shipping
Remark:
1.The standard type for wire speed is 12m/s, If any special requirement, please contact us to customized.
2.In the all series of servo tensioner, please confirm output of maximum tension scope. Such as: You need tension range is 1-100g, that can select SF100. According to definition of type. Kindly confirm if need properties of tension attenuator or display tension function and mounted position of the tension wheel. If no need other function,That can choose SF100.
|
|
