Magnetic Tensioner-Coil winding machine tension device

We are specicalized in coil winding mahince tensioners,

Such as Magnetic tensioner,electronic tensioner and servo tensioner

with high quality and the most competitive price in china.

Our wire tensioners can be used on almost any brand of coil winding machine,

and most models can be fitted with a microswitch for detection of broken winding wires

on request .

Product Description:
Vertical Magnetic Tensioner
Product Category: Tensioner series
Product Features:
Vertical magnetic tensioner is generated by the magnetic torque Yin, no mechanical friction,
so can produce stable tension for a long time, and accuracy can get effective guarantee.

The MTC series is produced by the change of the torque of the magnetic field, which is produced
by the change of the torque, which has no mechanical friction, so it can generate stable tension for
a long time, and the precision can be guaranteed effectively. The freedom of the adjustment of the tension, can be adapted to the side of the skeleton of the winding and sharp changes in the speed
of the winding around the wire, will not produce a broken wire. When the broken wire and the wire
rod are used up, the detection device is informed by the disconnection detection device of the
equipment, and the winding machine automatically stops. This series of tension device is an upgraded version of mechanical series, the use of double break alarm mechanism, the internal increase of the photoelectric detection of broken wire alarm, and the use of indicator light shows that the overall
structure is more scientific and firm.

Use matters needing attention:
1) A tension rod and box body on the plane parallel to the best working state, according to the users
need to use the appropriate angle of work, but work tension rod shall not be higher than the red
markings on the front of the box.
2) In the work process allows only by minor tension, prohibited by a small flat. When the tension required by the major hours must be adjusted in a stop state, so as to avoid breakage.
3) Such as in the adjustment of tension pulsation phenomenon, after the stop tension adjustment of the rotary disc to the maximum tension, and then slowly back to the desired tension around the re adjustment.
4) Adjust the end of the beginning of the work, the working angle of the tension rod like and installing a static point of view as, please must re adjust the tension, so as not to components of the tension device caused by normal wear and tear, and reduce the service life.

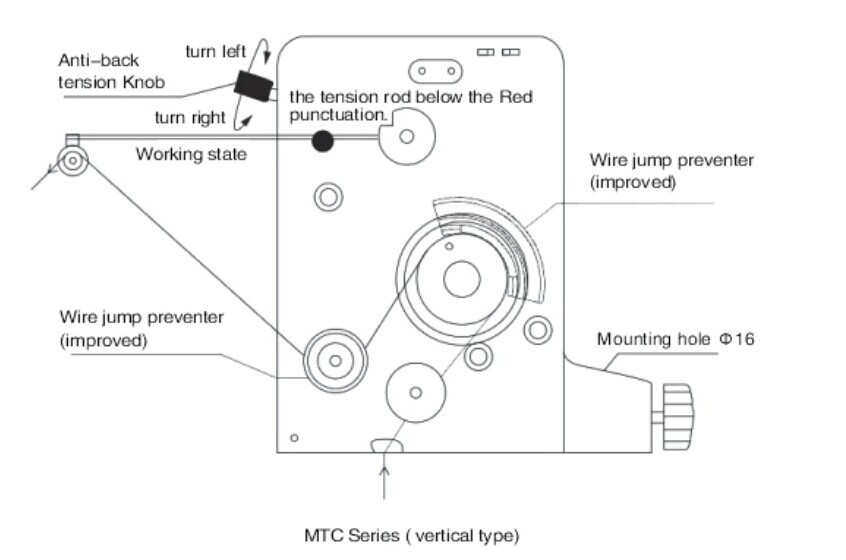

Hanging line diagram

Tensioner test conditions :

Wire speed is 15M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.

Key features of Type MTCSS :

• Tension Scope :5-130g
• Applied wire diameter 0.025-0.12mm
• Tension Rod : TR-30#

Picture show:

QH-MTCSS

Assembly workshop

Winding tensioner packing

Why do you choose us?
1.100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of
experience, we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging,
delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many
customers are very happy to cooperate with us, because we can provide a more competitive
price as a factory.
3,The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified
can be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before
the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.

Hangzhou Qianhe Precision Machinery Co., Ltd. was established in 2006, It is a national High-tech enterprise which specializing in the design and production of all kinds of automatic winding machine accessories. There three core advantages: 1. Servo tensioner and tension measurement ; 2.Air Nipper and winding fixture ; 3.Hard Alloy Winding Nozzle / guide needle .

For more than ten years, we hold the tenet of “integrity, pragmatism, innovation, and do global customer satisfaction”, and applies advanced quality management standards to the whole process of product realization, striving to create “high-hard and high- fine and more Excellent products.The three series of products have been widely used in the advanced automatic CNC winding equipment at home and abroad, and won the praise of the market and customers.

We are a national high- tech company ,with a mature R&D and management team ( obtained a number of patent certificates).with a group of skilled production technology backbone.the main management staff have more than 16 years of work experience in this field .We regard "Conscience, Ingenuity and Innovation" as the core of corporate culture, and promise to provide our customers with the most sincere, professional and quality services.

Mr. Zhang,General Manager

We have employees more than 100 and 3,000 square meters plants.The main management staff engaged in this field more than 10 years.we design and developed with four series products.

We produce all kinds of winding machine spare parts ,the main products are winding tensiner ,winding nozzle ,Air Nipper ,wire stripper ,tension meter and Ceramic pulleys.

Our winding tensioner working in different brand of winding machine and using in different fields.

We are a national high-paying technology company and have obtained a number of patent certificates.
